Introducing the Most Advanced CH-47 Internally Air Transportable Tactical Utility Vehicle.

The Flyer® 72 Tactical Utility Vehicle (TUV) is an open cargo deck vehicle that is capable of supporting multiple mission kits. The TUV shares the same based design 90% component commonality with our USSOCOM’s M1288 GMV 1.1 and Army’s M1297 AGMV vehicles. The TUV can be used as a kit modification for either the M1288 or M1297 vehicles.

The TUV’s open cargo deck (69” wide X 83” long), combined with below deck and external storage compartments, provide 102 cubic feet of cargo space – unprecedented payload volume for this class of vehicle.

An Industry-first  Curb Weight to Payload Ratio Greater than 1:1while Retaining the Same Mobility

More Payload and Modular Configurations than Any Vehicle in it’s Class

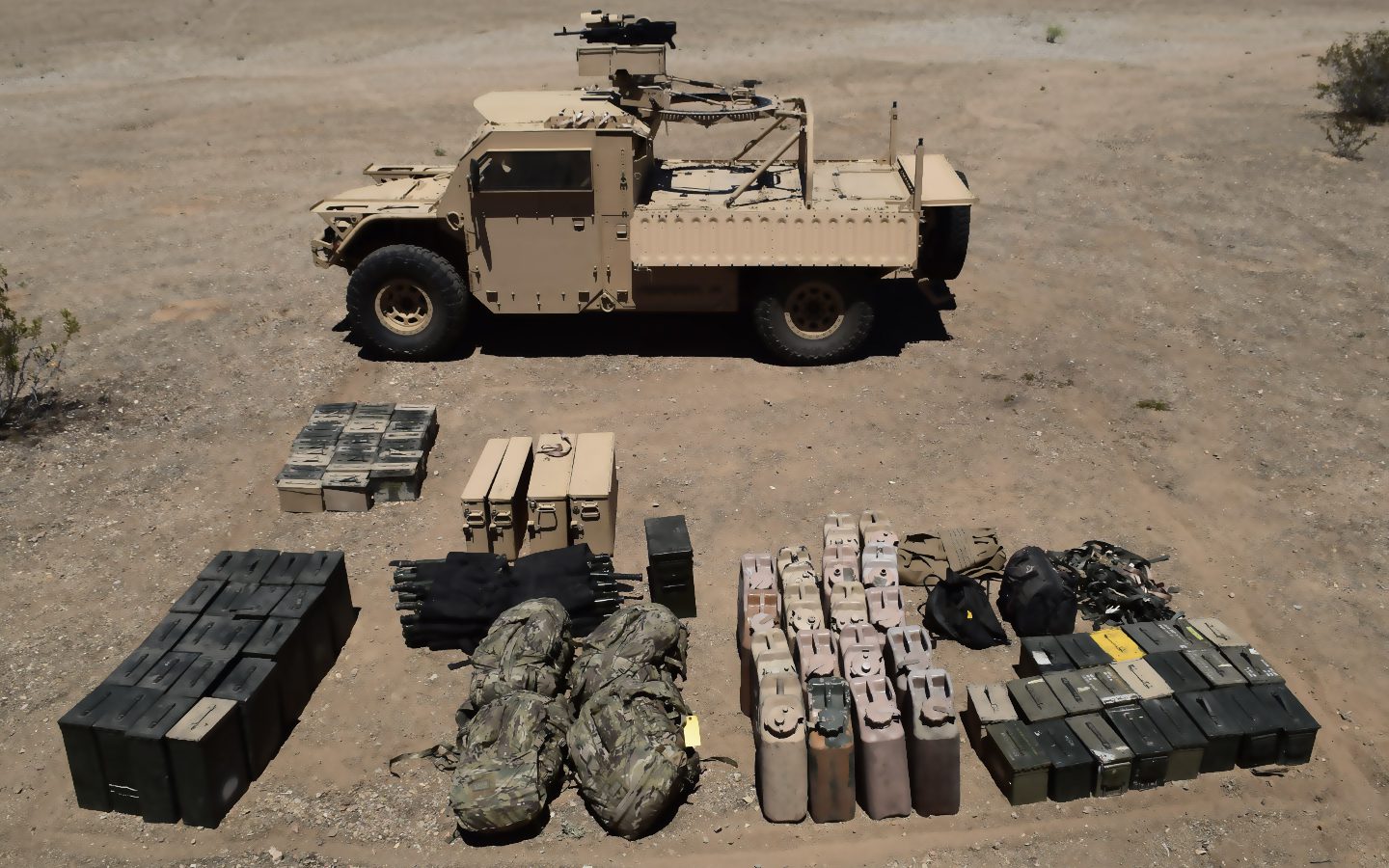

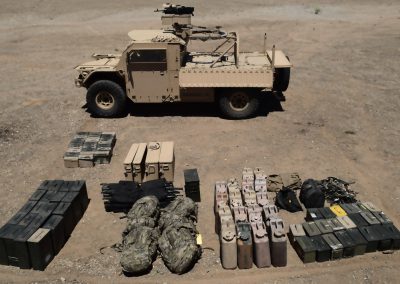

With a payload capacity of 6000 Lb. (>2700 Kg), the Flyer® 72 TUV offers an industry-first payload ratio greater than 1:1 (curb weight to payload), while retaining the same mobility, maneuverability and reliability of the GMV 1.1 and Army GMV variants.

  • The most options for payload and modular kits than any vehicle in it’s class

  • Internally & externally transported by CH-47/53 Helicopters and C-130 aircraft

  • Shared design and performance of the M1288 GMV 1.1 and M1297 AGMV Vehicles
  • Multiple weapon systems from 7.62mm to .50 cal weapon capacity on manned or remote weapons station

  • Weapon side mounts on doors and rear deck
  • Provides national strategic airlift options, nearly twice the amount of vehicles per flight on C-17 with more than double the soldiers per flight
  • Sealable armor for increased crew protection

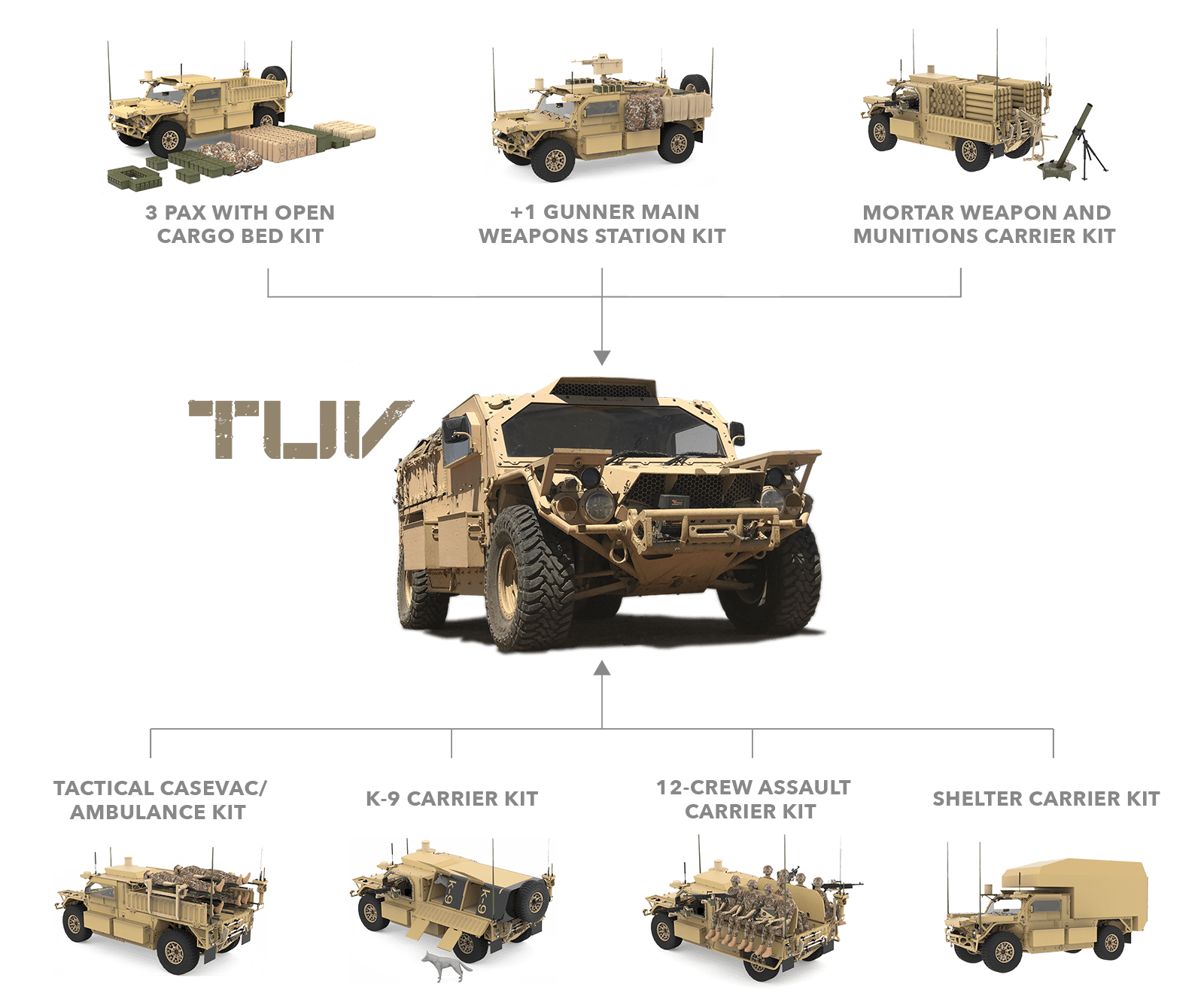

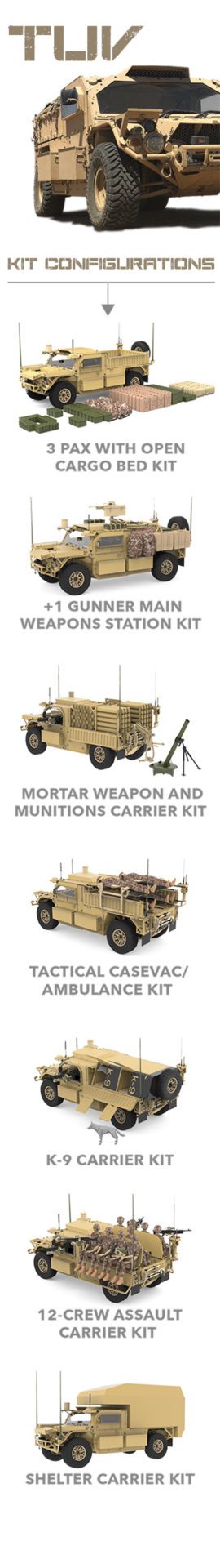

Multiple Kit Configurations:


Copyright © 2018 General Dynamics Ordnance and Flyer Defense LLC. All rights reserved. None of the images contained may be reproduced without the prior written permission of either General Dynamics Ordnance and Tactical Systems or Flyer Defense LLC

Specifications:

HORSEPOWER
195 HP

TORQUE
295 FT/LBS.

CRUISING RANGE
300 – 500 MILES

FORDING
30 IN. No Prep

GROUND CLEARANCE
14 IN./35 CM

DIMENSIONS

Seating

Base Seating: 3  (Option for 9 Seat Kit)

Wheelbase

126” (320 cm)

Length

182” (462 cm); 193” (490 cm) with pushbar and winch

Body Width

Chassis width 72” (183 cm) overall; 85” (216 cm) with side cargo boxes

Height

72” (184 cm) Adjustable

Payload

6000 lb. (>2700 kg)

Approach Angle

73°/55° w/pushbar & winch

Departure Angle

53°

Ramp Over Angle

146°

Vertical Step

18” (45 cm); 24” (61 cm) diagonal

Ground Clearance

14” (35 cm)

Fuel Capacity

23 gal. (87 L)

Chassis

Tubular space frame

Roll Cage

Integrated roll cage meets FMVSS 216 & SAE J2422 CH#5 & 6

POWERTRAIN and PERFORMANCE

POWERTRAIN

Engine Type

2.0 L GM DOHC Bi Turbo charged Intercooled, Direct Injection Common Rail Fuel System F-24/JP8/Diesel Fuels

Horsepower/Torque

195 HP (145 kW)/ 295 ft-lb.  (400 Nm)

Transmission Type

Automatic power shift 6 speed (Tiptronic)

Torque Convertor

Lockable

Differentials

Limited slip – front and rear

Transfer Case

2 speed


PERFORMANCE

Top Speed

95 mph (153 kph)

Cruising Range

300 miles (483 km) at Mission Profile; 500 miles on flat ground at 40 mph (800 km)

Maximum Grade

60%

Dynamic Side Slope

40%

Turning Radius

38 ft. (11.58 m) curb to curb

Fording

30” no prep (76 cm)

SUB SYSTEMS and ELECTRICAL

ELECTRICAL

12/24V ISOLATED SYSTEMS

Charging System

12V, 140 amp 2 x 68 Amp /Hr batteries

Battery Capacity

12V system; 2 parallel 68 Ah 24V system; 2 series 120 Ah



SUB SYSTEMS

Suspension, f/r

4-wheel coil over shocks independent adjustable suspension with 4 air spring variable ride

Service Brakes, f/r

Power assist 4-wheel disc with ABS

Wheel and Tire Size

Wheel size 37 x 12.5 R17 (D) with internal bead lock VFI run flat, optional CTIS
Optional tire size 37 x 13.5 R17 (E)
