Vector-35G Precision Pan-Tilt Positioner

PAN-TILT MOTOR SYSTEMS

Vector-35G Precision Pan-Tilt Positioner

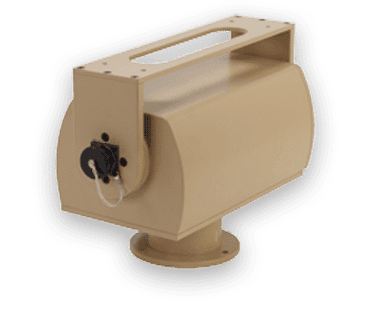

Vector-35G Precision Pan-Tilt Positioner

With its high torque capability, the Vector-35G accommodates a wide range of payloads from long range cameras to radar systems. The Vector-35G is ruggedized to ensure performance in the harshest environment and provide unmatched reliability. General Dynamics Ordnance and Tactical Systems’ unique, proprietary design allows for 24/7 continuous operation without requiring homing or calibration.

The Vector-35G leverages our in-depth expertise in motion control systems. It provides superior control and accuracy. With precision hardened gearing and built-in control electronics, the system provides precise, smooth motion with high torque. It’s perfect for long range sensors, and is also optimized for radar applications with complete EMI shielding.

General Dynamics Ordnance and Tactical Systems designs and manufactures high-performance motion systems and components that provide our customers the accuracy and reliability to successfully complete their mission. We leverage 40 years experience in motion technologies, to design and manufacture a full suite of pan-tilt systems.

Vecter-35G Advantages:
  • High speed & smooth motion Up to 90°/sec
  • 360° continuous pan rotation
  • Low power consumption
  • Low backlash precision gearing
  • Upright or inverted installation options
  • Software adjustable stops
Vector 35G Features
  • Supports a wide range of cameras, radars or other payloads, up to 35 pounds (15.9 kg)
  • Simplified integration with table top mount and high torque
  • Ruggedized and sealed to protect against vibration, temperature extremes, dust, sand, wind, rain, snow and ice
  • Starts instantly; no warm up required
  • Absolute position sensors require no homing or calibration
  • 24/7 continuous operation
Vector-35G Performance

Pan-Tilt Performance

Pan Axis

Tilt Axis

Speed

0.5 to 90 ˚/sec

1.0 to 15˚/sec

Angular Range

360˚ continuous

-45˚ to +45˚

Peak Torque

1,200 oz-in

8,000 oz-in

Accuracy

±0.1˚

±0.1˚

Repeatability

±0.05˚

±0.20˚

Resolution

0.005˚

0.005˚

Backlash

<0.1˚

<0.25˚

Duty Cycle

100%

100%
